Mined area Indicators – Transporter





Sheet 33     Transporter
(Page 1)

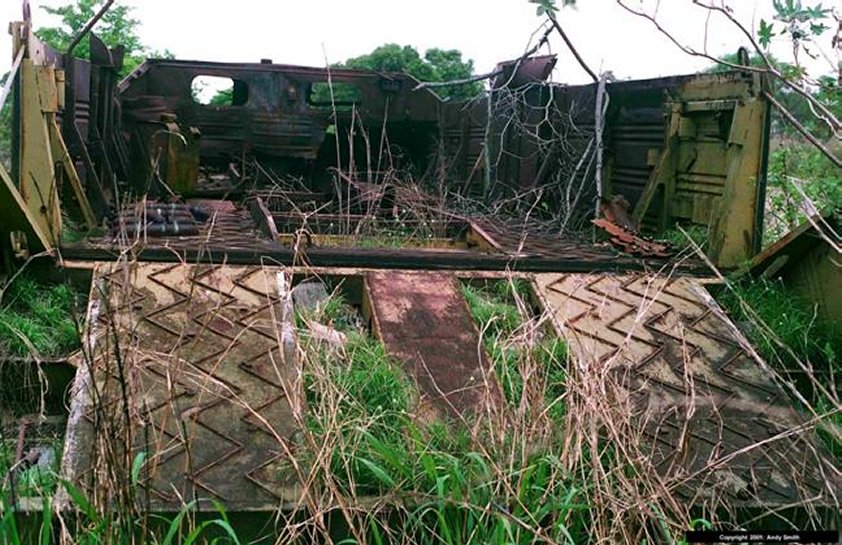

The picture shows an abandoned transport vehicle with its ramp down. The vehicle was destroyed in an ambush and has been left near the roadside for many years.

At first, local people avoided it. Later they started to use nearby land and used the transporter as a place to put items that got in their way.

Four different indications of fighting are clearly visible.

This vehicle was once safe but is now a store for potentially dangerous items.

Suggested message(s):

  • Avoid any impulse to investigate abandoned military equipment.
  • Do not assume that a place that was safe some time ago will still be safe.



Sheet 34      Transporter
(Page 2)

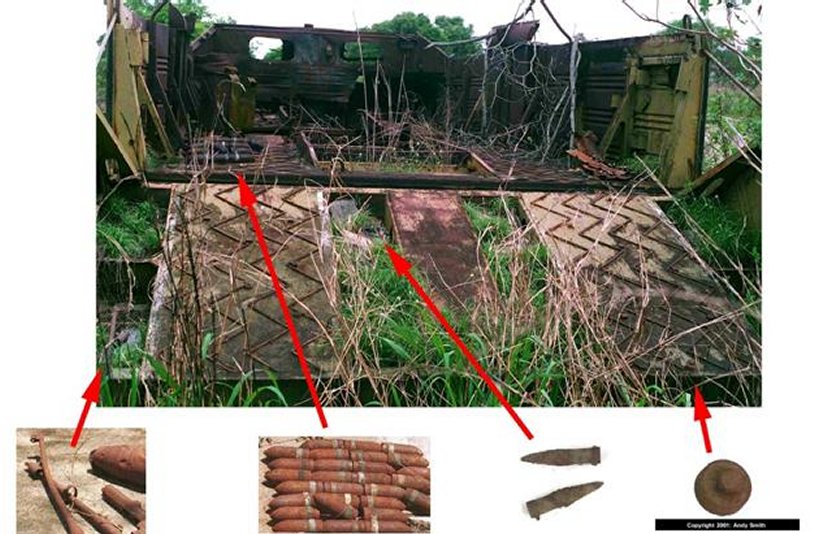

The picture shows rusting rifles, cartridges and small shells.  It also shows the arming/safety caps that are discarded when PG-7s (rocket propelled grenades) are assembled for use.

Suggested message(s):

  • Even small plastic items can be a warning of danger.
